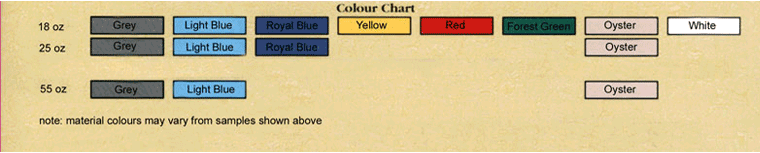

This curtain is the most economical divider to install and maintain. It is not recommended for heights exceeding 30 ft. (9144 mm) because of stress caused by continual pull on leading edge of curtain when opening and closing. Most wear occurs on bottom of curtain from abrasion when opening and closing the curtain. Storage requires a minimum of 167 mm per M (2" per ft.) of curtain width but should be contained with a strap, as the curtain will spring open slightly because of the bulk of the material. The curtain is supplied at 10% wider than the width of the area to be closed off. Storage track is extra. The curtain is available in a variety of styles, colours and weights. The storage of the curtain is usually at one side of the gymnasium, perpendicular to the wall or along the side of a wall if a storage area exists. It can be supplied in two sections with the lower 8 feet (2450mm) equipped with Velcro® strips on both leading edges to facilitate closing of the curtains.
A carrier with dual wheels mounted on ball-bearings is provided every 12" (305mm) along the length of the curtain. A master carrier is provided at both ends to facilitate curtain movement during placement and retraction.
The track is a heavy-duty double-T extruded aluminum and is supported every 4' to 6' (1220 to 1830mm). The advantage of this type of track is that it is extremely durable and easily spliced. The track can be bent at the job site to facilitate installation and is suitable for both nylon and steel wheeled carriers. Splices and track clamps can be attached to the upper half of the track and will not affect the smooth operation of the curtain. The curtain is attached to the carriers by sturdy S-hooks and plated adjusting chains.
The curtain is fabricated with 18 oz. (0.61 kg/m2) or 25 oz. (0.85 kg/m2) vinyl-coated polyester with similar appearance and embossed on both sides. Curtains can be supplied in solid vinyl or with the bottom 10 feet (3056mm) in solid vinyl with an alternative material for the top portion.
All Walkdraw curtains bear a certification label from an accredited testing laboratory stating the fire and smoke rating on small and large scale tests.
The top of the curtain contains a 3" (76mm) band of hemp that is totally concealed and quadruple sewn. #4 grommets are used at each end of the curtain at 3" (76mm) centers to accept the master carriers. The side are hemmed over 2" (50mm) and double sewn to give a clean durable edge. The bottom of the curtain has an 8" (203mm) pocket hemmed over and double sewn. The curtain is supplied with a draw string (leader) in the lower pocket to pull through a 3/16" (5mm) diameter chain if required. The width of curtain must be ordered 10 percent larger than the width of the gymnasium to allow for fullness.
Three year warranty on track and carriers
Two year warranty on vinyl curtain |
